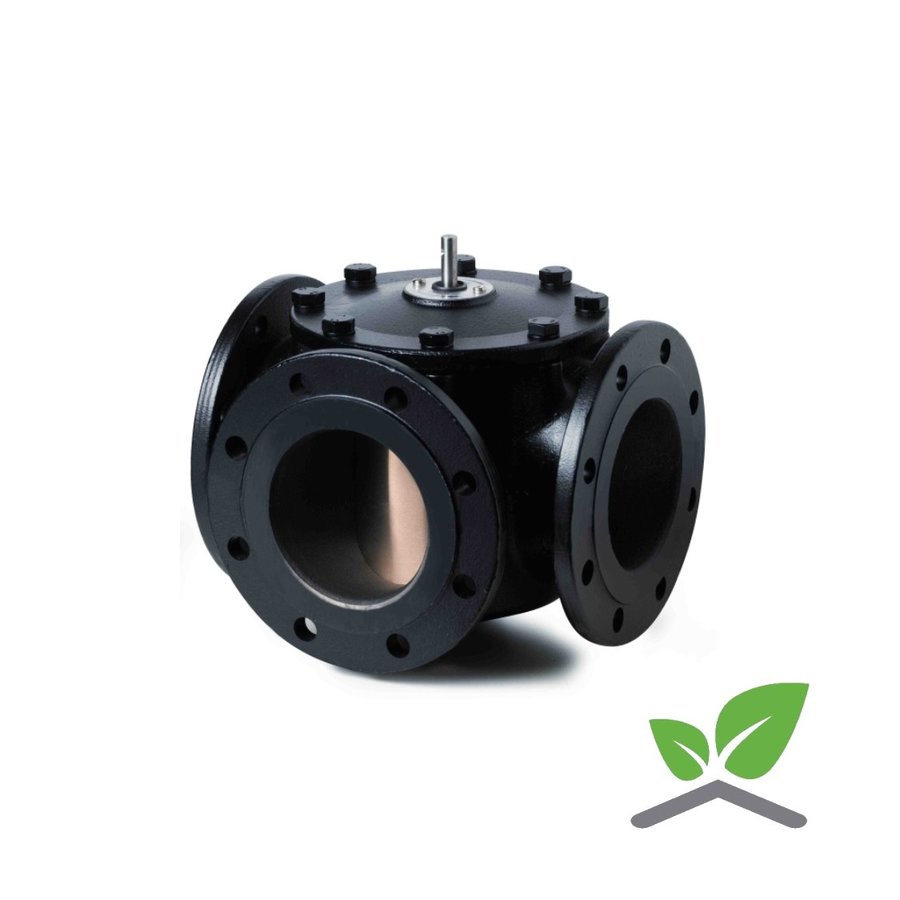

Siemens Three-port slipper valves, PN6, flanged VBF21 PN6 N4241 DN 125-150 kvs 550 - 820
Three-port slipper valve PN6 with flange fittings to ISO 7005
For use in closed-circuit heating systems and mixing applications

Angle of rotation 90 °
Medium temperature 1...120 °C
Valve characteristic: lineair
Permissable operating pressure: 600 kPa
Material valve body: cast iron EN-GJL-250 (GG20/25)
Material inside set: CrNi-staal/Rg6
PN class 6
Material housing: cast iron EN-GJL-250 inside: brass
Leakage rate 0...0,5 % of kvs-value

Related products:

This product is supplied without gaskets, flanges and nuts and bolts.
One gasket is required per flange.

A mounting kit for the servomotor is not included.
If the mixing valve is used as a new installation with an actuator, a mounting kit ASK31N is required. This is available separately.
When replacing the mixing valve, it may be possible to use the old mounted set.

Matching actuators: SAL31/61/81


Available types:

 VBF21 Data sheet (EN)
