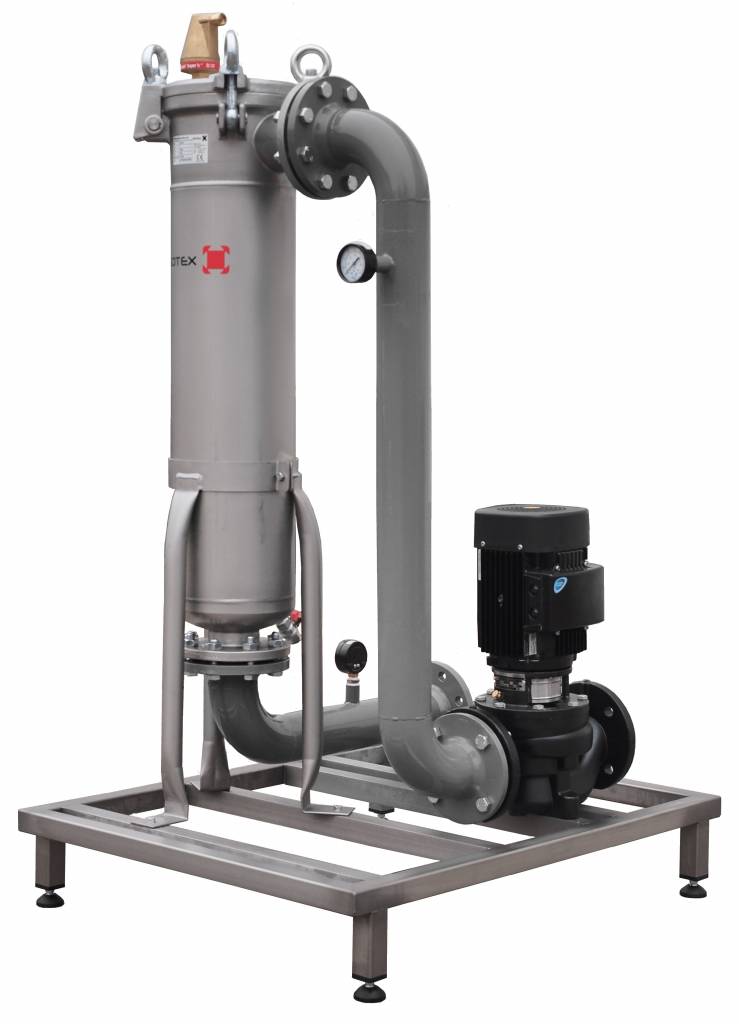

Sotex slib stream filter with Grundfos pump and pipework on frame SFU+

Complete filter unit, containing part-flow filter and centrifugal pump, supplied with connecting pipework from and to the pump, pre-assembled on a stainless steel tubular frame.

- carefully selected centrifugal pump Grundfos TP
- 1x neodymium magnetic bar (12”at SDF 6 & 12, 24”at SDF 20 and up)
- connecting piping ending with flanges
- assembled on a stainless steel tubular frame
- two pre-mounted pressure gauges
- float vent de-aerator
- two filter bags (50 μm)
- SFU+ is available in the capacities: 6, 12, 20, 36, 54, 72 and 108 m³/uur. Other capacities are also available on request.
- Electrical connection 230V or400V

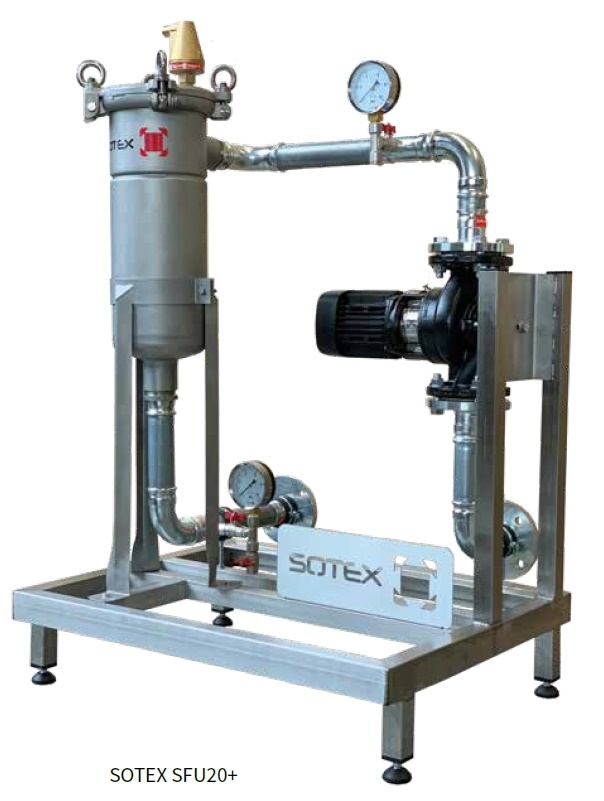

Sotex SFU+
