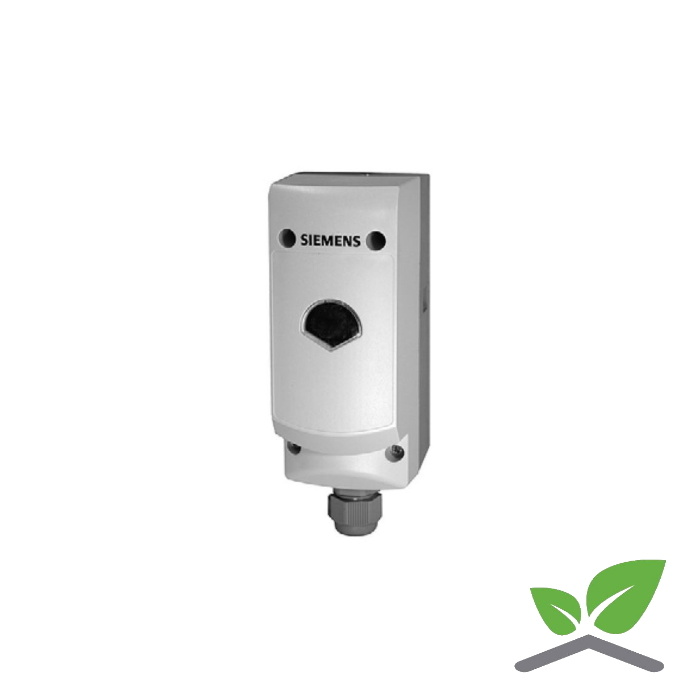

Siemens RAK TW1200B Thermal reset limit thermostat, 40...120 °C, protective pocket 100 mm, capillary tube 700 mm, clamping band

Typical applications: Heat generation plant (supervision of the boiler temperature; mandatory in open heating systems) , and general use in heating, ventilation and air conditioning plant.

3 mounting choices: pipe, pocket or wall mounting

Protection pocket and clamping band included.

Technical data

• Switching capacity contact connection 1-2: 16 (2.5) A, AC 250 V, contact connection 1-3: 6 (2.5) A, AC 250 V
• Degree of protection IP 43
• Time constant conforming to DIN 3440
• Adjusted switch-off temperature can be checked through the viewing window in the housing
• Temperature setting range 40 - 120°C
